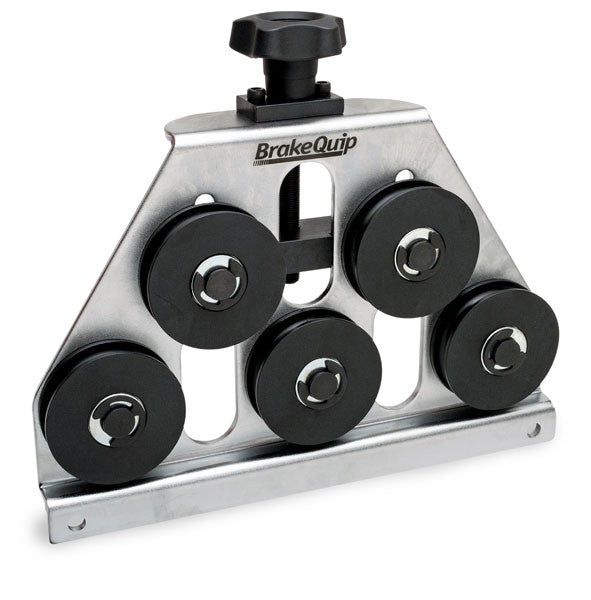

Eastwood Tube Straightener

Sale price$735.00

Get a shipping quote


Straighten coils of tube quickly and easily with the BQ1028 Tube Straightener. This tube will make your next custom tube job look like it was a factory replacement. It is critical that any tube bending operation begin with a straight tube. This will free you up to match the exact bends of your original without dealing with imperfections in your tube.

  • Works on stainless
  • 3/16” to 1/2″ tube
  • Non Marking ABS Wheels
  • Heavy Duty Construction
  • 5 Point Precision
  • Vice mounted or Bolt straight to workbench
  • Fully Adjustable
  • Smooth Ball Bearing Action

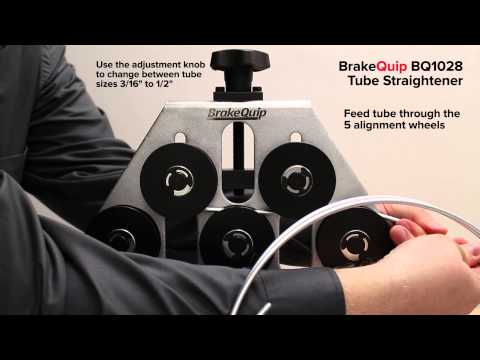

The BQ1028 Tube Straightener was designed to provide the average shop the same results as much larger CNC machines. Using a simple 5 wheel straightening method it prepares coils of tube to be bent and installed. It works on any thin wall annealed tube from 3/16” to 1/2″ including stainless steel. The wheels are adjusted by a large knob on the top of the tool. Once you dial in the correct size simply pull the tube through the tool to straighten. The alignment wheels are made from ABS plastic and contoured to the shape of the tube. This leaves your tube unmarked and ready to be formed.

Finally a solution to straightening coils of brake tube. This tubing straightener easily straightens light wall tubing from 3/16 inch to 1/2 inch. The tool can be mounted in a vice or permanently mounted to a bench. All types of tubing can be used in this straightener, even stainless steel. Simply pull your tubing through the series of ball bearing mounted rollers and laser straight tubing comes out the other side.

Easy Adjustment-The easy to use adjustment knob makes changing tube size easy. Simply insert your tube and turn the knob. This fine threaded piece allows you to fine tune the tool to any tube size.

ABS Plastic Wheels-Unlike other methods of straightening tube the BQ1028 uses hard ABS plastic wheels. Hard enough to work up to 1/2″ tube but unlike steel rollers won’t leave marks on the tube. Each wheel contains a ball bearing system that creates a smooth action as the tube slides through.

Mounting Versatility-Easily mount the BQ1028 in a vice or use the bolt mounts to attach it to the side of your workbench.
